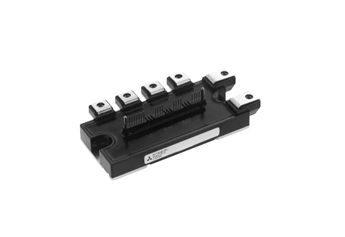

三菱IPM模塊 _【第5代L1系列】
性能特點
采用全柵型 CSTBTTM硅片實現低損耗
IGBT硅片正中央處集成溫度傳感器，過溫保護更精確(145℃)
新的結線技術使功率循環能力得到顯著提高
主端子有針腳型和螺絲型兩種形式
與第5代L系列IPM兼容
新增S型七合一封裝(90mm 50mm)
完全無鉛焊接(對應RoHS指令)
應用領域
高性能變頻傳動裝置，如矢量控制變頻器、伺服驅動器等
封裝尺寸
S 型 A 型 B 型 C 型
90mm×50mm 133mm×66.75mm 120mm×55mm 135mm×110mm
IPM (L1 series)
| 電路 拓撲 | VCES(V) | Ic(A) | ||||||||
| 25 | 50 | 75 | 100 | 150 | 200 | 300 | 450 | 600 | ||
| 6單元 | 600 | PM50C L1A060 | PM75C L1A060 | PM100C L1A060 | PM150C L1A060 | PM200C L1A060 | PM300C L1A060 | PM450C L1A060 | PM600C L1A060 | |
| PM50C L1B060 | PM75C L1B060 | PM100C L1B060 | PM150C L1B060 | |||||||
| 1200 | PM25C L1A120 | PM50C L1A120 | PM75C L1A120 | PM100C L1A120 | PM150C L1A120 | PM200C L1A120 | PM300C L1A120 | PM450C L1A120 | ||
| PM25C L1B120 | PM50C L1B120 | PM75C L1B120 | ||||||||
| 7單元 | 600 | PM50R L1A060 | PM75R L1A060 | PM100R L1A060 | PM150R L1A060 | PM200R L1A060 | PM300R L1A060 | |||
| PM50R L1B060 | PM75R L1B060 | PM100R L1B060 | PM150R L1B060 | |||||||
| PM50R L1C060 | ||||||||||
| 1200 | PM25R L1A120 | PM50R L1A120 | PM75R L1A120 | PM100R L1A120 | PM150R L1A120 | |||||
| PM25R L1B120 | PM50R L1B120 | PM75R L1B120 | ||||||||
| PM25R L1C120 | ||||||||||
